  • A4ARCHITECT DIAMOND HOUSE PLAN COST


    DIAMOND HOUSE EXTENDABLE DESIGN FLAT ROOF VERSION   SLOPED ROOF VERSION

      FLOOR AREA M2

    PHASE 1 ONE BEDROOMED 45M2

    45



    45






    https://picasaweb.google.com/100670517898592718535/DIAMONDHOUSEFLATROOF?authuser=0&feat=embedwebsite#
      ESTIMATED COST   ESTIMATED COST
    LOW COST MATERIALS-45M2        900,000.00         1,125M
    MIDDLE COST MATERIALS-45M2    1,35M         1,35M
    HIGH COST MATERIALS-45M2    1,8M         1,8M


    PHASE 2 TWO BEDROOMED 67M2

    67



    67





    https://picasaweb.google.com/100670517898592718535/DIAMONDHOUSEFLATROOF?authuser=0&feat=embedwebsite# ESTIMATED COST   ESTIMATED COST


    LOW COST MATERIALS-67M2    1,34M         1,675M
    MIDDLE COST MATERIALS-67M2    2,01M         2,01M
    HIGH COST MATERIALS-67M2    2,68M         2,68M


    PHASE 3 THREE BEDROOMED 92M2

    92



    92





    https://picasaweb.google.com/100670517898592718535/DIAMONDHOUSEFLATROOF?authuser=0&feat=embedwebsite# ESTIMATED COST   ESTIMATED COST

    LOW COST MATERIALS-92M2    1,84M         2,3M
    MIDDLE COST MATERIALS-92M2    2,76M         2,76M
    HIGH COST MATERIALS-92M2    3,68M         3,68M
    DIAMOND HOUSE RONGAI VERSION


     DIAMOND HOUSE RONGAI TYPE THREE BEDROOMED 100M2



      ESTIMATED COST
    https://picasaweb.google.com/100670517898592718535/RONGAITUALADIAMONDHOUSEVersion20#
    LOW COST MATERIALS-100M2    2M
    MIDDLE COST MATERIALS-100M2    3M
    HIGH COST MATERIALS-100M2    4M



  • A4ARCHITECT.COM CONSTRUCTION MATERIALS PRICE INDEX,KENYA,RWANDA

    A4ARCHITECT.COM CONSTRUCTION MATERIAL PRICE INDEX SEPTEMBER 2011


      SEPTEMBER 2011 PRICES KES     % INCREASE
      KENYA PRICE  [Nairobi] RWANDA PRICE[Kigali]  DIFFERENCE

    LABOUR

    Foreman

    1100

    1200

    100

    9.09091

    Builder-Fundi

    700

    700

    0

    0

    Builder’s Assistant-Mtu wa Mikono

    350

    350

    0

    0


    Anti Termite 1 ltr [Mlolongo A&B Hardware]

    2200



    Polyethene roll. [Mlolongo A&B Hardware]

    4500



    Masonry stone-rough[Kasarani junction traders]

    40


    Masonry Stone-machine-cut[Kasarani junction traders]

    60


    Walling Brick per m2

    1000

    2000

    1000

    100

    Walling cncrete block per m2

    1300

    3000

    1700

    130.769


    Cement-50kg bag.

    750

    1500

    750

    100


    SAND per tonne

    1700

    2300

    600

    35.2941


    BALLAST per tonne

    1500

    2300

    800

    53.3333


    Steel Reinforcement bars.

    Y10

    690


    Y12

    970

    1000

    30

    3.09278

    Y16

    1750

    2000

    250

    14.2857


    ROOF

    Timber 6×2 cypress [per LM]

    240

    145


    Hardwood 250mm by 10mm per LM

    1300

    1300



    Clay roof tile per m2[Ruliba Clays, Kigali]

    500

    900

    400

    80

    Concrete Roof tile per m2[Mareba]

    650



    Iron sheet-Gauge 30 per m2[Kiserian Hardware shop next to KCB]

    280


    Gauge 32-per m2

    250



    Stone-coated steel roofing tiles

    2100



    WINDOWS

    Alluminium window frame 1 m2[FITC Hardware, Baricho road]

    5500



    Steel casement window frame 1m2

    5000



    Louvre window system 2 LM[FITC Hardware, Baricho road]

    900



    GLASS per  1M2[Kikuyu Glass mart,Waithaka]

    3mm clear

    500


    4mm clear

    700


    Obscure

    700



    DOORS

    TnG batten door

    1900


    Flush Door

    2600


    MDF board

    2750




    PLUMBING[Kerai Hardware, Parklands]

    STAINLESS STEEL – KITCHEN SINK
    One drain/ one bowl

    1700


    Two drain/ one bowl

    4700



    SANITARY AND ACCESSORIES
    Ceramic WC Pan + cistern + seat + flush pipe – India

    7500


    WC – Asian – & High Level PLASTIC cistern + flush pipe – India

    3500


    Shower Cocks – ½” concealed with shower pipe and 3″ rose – UK

    6500


    Push Taps – PILLER type – UK

    2560


    Wall Type Tap – UK

    1200





    ELECTRICAL[Kerai Hardware, Parklands]



    FLUORESCENT

    PRICE @ Kshs


    POLAROID TUBES – GERMANY
    2ft Tubes each

    75


    4ft Tubes each

    85


    ENERGY SAVINGS LAMPS

    PRICE @ Kshs


    POLAROID – GERMANY
    ENERGY SAVING BULBS 2U E27 & B22 11W OR 14W

    151


    ENERGY SAVING BULBS 3U E27 & B22 11W OR 14W

    170


    ENERGY SAVING BULBS SPIRAL B22 11W OR 14W

    218





    ELECTRICAL ACCESSORIES

    @Ksh


    BLANK PLATE SINGLE (C&J)

    46


    BLANK PLATE TWIN (C&J)

    59


    PATRESS BOX SINGLE (C&J)

    43


    PATRESS BOX TWIN (C&J)

    66


    CEILING ROSE COMPLETE (BJ & TJ)

    146


    ANGLE BUTTEN HOLDER (BG & TJ)

    72


    STRIGHT BUTTON HOLDER (BG & TJ)

    85


    TOP PLUG 13AMPS (MK)

    108


    TOP PLUG 13AMPS NEON (BJ)

    95


    INSTANT SHOWER

    1700


    DING DONG BELL

    550








  • A4ARCHITECT.COM CONSTRUCTION MATERIAL PRICE INDEX

    A4ARCHITECT.COM CONSTRUCTION MATERIAL PRICE INDEX

    This construction material price index has been compiled by www.a4architect.com through direct data collection from suppliers in the Building Industry/Hardware shops around Nairobi and Kigali cities.



    This is the first ever construction material price index that gives an analysis of construction materials as sold by different small-scale hardware shops in Kenya. This reflects the actual construction materials pricing that Kenyans are paying for.

    With the drastic rise of the USD vs KES, we will be updating the index on a monthly basis so as to keep Kenyans informed on the rise in materials prices hence better construction decisions.

    This incremental change will be reflected in our next index since most suppliers are currently still selling stock that was imported or produced when the KES to the USD was stable.

    This index will also compare the prices of construction materials between Kenya and other select East African countries such as Rwanda .

    SEPTEMBER 2011 PRICES KES
     CONSTRUCTION INPUT KENYA PRICE  [Nairobi] RWANDA PRICE[Kigali]  DIFFERENCE  % INCREASE
    LABOUR
    Foreman

    1100

    1200

    100

    9.090909

    Builder-Fundi

    700

    700

    0

    0

    Builder’s Assistant-Mtu wa Mikono

    350

    350

    0

    0

    Anti Termite 1 ltr [Mlolongo A&B Hardware]

    2200

    Polyethene roll. [Mlolongo A&B Hardware]

    4500

    Masonry stone-rough[Kasarani junction traders]

    40

    Masonry Stone-machine-cut[Kasarani junction traders]

    60

    Walling Brick per m2

    1000

    2000

    1000

    100

    Walling cncrete block per m2

    1300

    3000

    1700

    130.7692

    Cement-50kg bag.

    750

    1500

    750

    100

    SAND per tonne

    1700

    2300

    600

    35.29412

    BALLAST per tonne

    1500

    2300

    800

    53.33333

    Steel Reinforcement bars.
    Y10

    690

    Y12

    970

    1000

    30

    3.092784

    Y16

    1750

    2000

    250

    14.28571

    ROOF
    Timber 6×2 cypress [per LM]

    240

    145

    Hardwood 250mm by 10mm per LM

    1300

    1300

    Clay roof tile per m2[Ruliba Clays,Kigali]

    500

    900

    400

    80

    Concrete Roof tile per m2[Mareba]

    650

    Iron sheet-Gauge 30 per m2[Kiserian Hardware shop next to KCB]

    280

    Gauge 32-per m2

    250

    Stone-coated steel roofing tiles

    2100

    WINDOWS
    Alluminium window frame 1 m2[FITC Hardware, Baricho road]

    5500

    Steel casement window frame 1m2

    5000

    Louvre window system 2 LM[FITC Hardware, Baricho road]

    900

    GLASS per  1M2[Kikuyu Glass mart,Waithaka]
    3mm clear

    500

    4mm clear

    700

    Obscure

    700

    DOORS
    TnG batten door

    1900

    Flush Door

    2600

    MDF board

    2750

    PLUMBING[Kerai Hardware, Parklands]
    STAINLESS STEEL – KITCHEN SINK
    One drain/ one bowl

    1700

    Two drain/ one bowl

    4700

    SANITARY AND ACCESSORIES
    Ceramic WC Pan + cistern + seat + flush pipe – India

    7500

    WC – Asian – & High Level PLASTIC cistern + flush pipe – India

    3500

    Shower Cocks – ½” concealed with shower pipe and 3″ rose – UK

    6500

    Push Taps – PILLER type – UK

    2560

    Wall Type Tap – UK

    1200

    ELECTRICAL[Kerai Hardware, Parklands]
    FLUORESCENT

    PRICE @ Kshs

    POLAROID TUBES – GERMANY
    2ft Tubes each

    75

    4ft Tubes each

    85

    ENERGY SAVINGS LAMPS

    PRICE @ Kshs

    POLAROID – GERMANY
    ENERGY SAVING BULBS 2U E27 & B22 11W OR 14W

    151

    ENERGY SAVING BULBS 3U E27 & B22 11W OR 14W

    170

    ENERGY SAVING BULBS SPIRAL B22 11W OR 14W

    218

    ELECTRICAL ACCESSORIES

    @Ksh

    BLANK PLATE SINGLE (C&J)

    46

    BLANK PLATE TWIN (C&J)

    59

    PATRESS BOX SINGLE (C&J)

    43

    PATRESS BOX TWIN (C&J)

    66

    CEILING ROSE COMPLETE (BJ & TJ)

    146

    ANGLE BUTTEN HOLDER (BG & TJ)

    72

    STRIGHT BUTTON HOLDER (BG & TJ)

    85

    TOP PLUG 13AMPS (MK)

    108

    TOP PLUG 13AMPS NEON (BJ)

    95

    INSTANT SHOWER

    1700

    DING DONG BELL

    550



  • THE GROWING HOUSE CONCEPT IN EAST AFRICA: DIAMOND HOUSE BY A4ARCHITECT.COM. FROM VERSION 1.0 IN 2003 TO VERSION 2.2 IN OCTOBER 2011.

    THE GROWING HOUSE CONCEPT IN EAST AFRICA: DIAMOND HOUSE BY A4ARCHITECT.COM. FROM VERSION 1.0 IN 2003 TO VERSION 2.2 IN OCTOBER 2011.

    The first Growing House that was designed to start with 1 bedroomed, then over time move to 2 bedroomed and finally rest at 3 bedroomed was designed by www.a4architect.com.This is the Diamond House . The information was released to the public on 18th February 2010
    http://www.a4architect.com/2010/02/18/haiti-free-house-plans-as-the-dust-settles/
    A4architect.com released this information so as to assist the Haiti People after they suffered a devastating earthquake measuring 7.0 on the Richter scale. This happened on 12th January 2010 and left over 316,000 people dead. This was part of our Corporate Social Responsibility and the designs were uploaded for free on
    http://www.a4architect.com/2010/02/18/haiti-free-house-plans-as-the-dust-settles/
    Since then, www.a4architect.com has continued to improve the design through Research and Development processes.

    DIAMOND HOUSE VERSION 1.0

    JANUARY 2003

    From ORIGINAL DIAMOND HOUSE

    This was designed by www.a4architect.com and constructed in the outskirts of Gaborone city in Botswana in 2003. The materials used for walling was fired clay bricks and was based on a white/Black color scheme which is the main theme for the current version of the Diamond House. This was based on a flat roof design.


    DIAMOND HOUSE VERSION 1.1

    18th FEBRUARY 2010
    http://www.a4architect.com/2010/02/18/haiti-free-house-plans-as-the-dust-settles/

    From Structural Insulated Panel[SIP] House-Office/Residence

    This was first released on 18th February 2010 and was mainly designed on a prefabricated panelized house template. The Room sizes were designed to fit prefabricated Structural Insulated Panel sizes of a width of 1.2m. The dimensions were all based on the 1.2 m wide panel and was designed for the Haiti –South America Market.

    From Structural Insulated Panel[SIP] House-Office/Residence

    The house was designed to be increased from 1 bed roomed to 2 and finally to 3 bed roomed.

    DIAMOND HOUSE VERSION 1.2

    From A4ARCHITECT DIAMOND HOUSE version 1.2

    On April 2010, www.a4architect.com came up with containerized house designs
    http://www.a4architect.com/2010/04/14/plug-n-play-house-2-bedroomed/
    The ever –increasing Dollar exchange rate coupled with global increase in steel prices pushed the costs of constructing the Plug n Play house upwards hence a better solution was needed.

    SEPTEMBER 2010

    www.a4architect.com published their Research on how to reduce costs of constructing a foundation by over 50% and still maintain same or higher quality Part 1.
    http://www.a4architect.com/2010/09/14/how-to-reduce-construction-cost-by-over-50-and-still-maintain-high-quality-part-1foundations/

    JANUARY 2011

    www.a4architect.com published their Research on how to reduce construction cost and still maintain high quality part 2.
    http://www.a4architect.com/2011/01/27/how-to-reduce-construction-cost-by-over-200-part-2-superstructurewalling-doors-windows-roof/
    On JANUARY 27, 2011, www.a4architect.com published their research on simplifying home ownership through 5 simple steps:
    http://www.a4architect.com/2011/01/27/5-steps-to-constructing-your-dream-house-the-haiti-house-plan-2-bedroomed-construction-cost-kes-297000/

    http://www.a4architect.com/2011/02/16/how-to-own-your-house-in-kenya-3-easy-steps/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+A4architect+%28A4ARCHITECT.COM%29&utm_content=FeedBurner

    FEBRUARY 2011

    DIAMOND HOUSE 1.2

    www.a4architect.com released the Diamond House version 1.2 and published it through Youtube .

    From A4ARCHITECT DIAMOND HOUSE version 1.2

    MARCH 2011
    After successfully completing various construction projects in Kenya, www.a4architect.com came up with a solution to reduce construction costs associated with Septic Tanks after realizing many Kenyans were wasting a lot of money in building oversize septic tanks without realizing that they are only used as curing devices as opposed to storage devices.

    http://www.a4architect.com/2011/03/16/septic-tank-kenya/

    MARCH 2011
    www.a4arhitect.com released another research on how to reduce the cost of house ownership in Kenya.
    http://www.a4architect.com/2011/03/02/how-to-reduce-cost-of-aqcuiring-new-home-in-kenya/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+A4architect+%28A4ARCHITECT.COM%29&utm_content=FeedBurner

    DIAMOND HOUSE VERSION 1.3

    In March 2011, a4architect.com released Diamond House version 1.3

    From 3 bedroomed diamond

    This version fixed a few issues that were noticed within the previous version 1.2.

    JULY 2011

    www.a4architect.com published further research on how to reduce construction cost in Kenya.
    http://www.a4architect.com/2011/07/26/tips-to-reduce-cost-of-constructing-buildings-in-kenya/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+A4architect+%28A4ARCHITECT.COM%29&utm_content=FeedBurner


    DIAMOND HOUSE VERSION 1.4

    From DIAMOND HOUSE FRONT TYPE

    www.a4architect .com released Diamond House version 1.4 which offered a wider variety of choices to potential house owners in terms of house shape.

    From DIAMOND HOUSE FRONT TYPE

    The roof colour,texture and materials could now offer a wider choice of preferences.

    From DIAMOND HOUSE FRONT TYPE
    From DIAMOND HOUSE FRONT TYPE

    AUGUST 2011

    DIAMOND HOUSE VERSION 2.0

    www.a4architect.com released and published research on the most efficient house in Kenya-the Diamond House plan version 2.0. This was a culmination of research spanning all the way from 2003 to 2011-9 years.
    Diamond House version 2.0 was inspired by the a4architect.com Ongata Rongai House.

    From 3 Bedroomed House, Ongata Rongai
    From 3 Bedroomed House, Ongata Rongai
    From 3 Bedroomed House, Ongata Rongai
    From 3 Bedroomed House, Ongata Rongai


    DIAMOND HOUSE VERSION 2.0

    From DIAMOND HOUSE FLAT ROOF

    Diamond House version 2.0 could now be easily integrated into other completely different floor plans and house shapes.
    DIAMOND HOUSE VERSION 2.1

    From RONGAI TUALA DIAMOND HOUSE

    More flexibility in terms of floor plans and exterior designs could now be achieved.

    DIAMOND HOUSE VERSION 2.1

    From RONGAI TUALA DIAMOND HOUSE
    From RONGAI TUALA DIAMOND HOUSE
    From RONGAI TUALA DIAMOND HOUSE


    http://www.a4architect.com/2011/08/08/the-cheapest-house-in-kenya-haiti-house-plan/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+A4architect+%28A4ARCHITECT.COM%29&utm_content=FeedBurner

    AUGUST 2011
    www.a4architect.com published 10 advantages that potential House owners, Banks and Financial institutions can benefit if they worked with us by utilizing the Diamond House concept.
    http://www.a4architect.com/2011/08/16/10-advantages-of-using-haiti-house-plan-by-www-a4architect-com/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+A4architect+%28A4ARCHITECT.COM%29&utm_content=FeedBurner

    29TH AUGUST 2011
    www.a4architect.com compiled the Diamond House into a product and came up with a method of implementation that the Banks and Financial Institutions can use to dispense the Diamond House plan.
    http://www.a4architect.com/2011/08/16/10-advantages-of-using-haiti-house-plan-by-www-a4architect-com/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+A4architect+%28A4ARCHITECT.COM%29&utm_content=FeedBurner

    31st AUGUST 2011
    www.a4architect.com published their research into how the Diamond House architecture can mark a Paradigm shift in East African architecture.
    http://www.a4architect.com/2011/08/31/the-diamond-house-design-a-paradigm-shift-in-east-african-architecture/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+A4architect+%28A4ARCHITECT.COM%29&utm_content=FeedBurner

    19th SEPTEMBER 2011
    www.a4architect.com published their research on how the Diamond House concept can be utilized to enable East Africans/Kenyans, majority of whom rent houses, to own their homes at an affordable cost-KES8,900 per month.
    http://www.a4architect.com/2011/08/31/the-diamond-house-design-a-paradigm-shift-in-east-african-architecture/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+A4architect+%28A4ARCHITECT.COM%29&utm_content=FeedBurner

    17th SEPTEMBER 2011

    www.a4architect.com published a video on YouTube showing how the Diamond House conserves the environment by saving on the number of timber used for roof trusses and eventually the number of trees cut.

    23RD SEPTEMBER 2011
    www.a4architect.com published their research on how the internet can be used to enable Kenyans/East Africans access the Diamond House through Banks/Financial Institutions.
    http://www.a4architect.com/2011/09/23/online-architectural-consultancy-service/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+A4architect+%28A4ARCHITECT.COM%29&utm_content=FeedBurner

    4th OCTOBR 2011
    On 4th October 2011, Family Bank released the GROWING HOME concept.

    10th OCTOBER 2011.

    Family Bank and www.a4architect.com agree to work together with the Diamond House included in the Family Bank’s Growing Home product.

    11TH OCTOBER 2011.

    Currently, a4architect.com is working on DIAMOND HOUSE VERSION 2.2 to be released by the end of October 2011.

    The Version 2.2 offers a wider choice of floor plan layout, utilizing the American style Kitchen within the confines of the shape of Version 2.0.

    OTHER FINANCIAL INSTITUTIONS WHO HAVE COME UP WITH SIMILAR CONCEPTS.

    Since the publishing of the Growing house phased construction by www.a4architect.com in 18th FEBRUARY 2010,
    http://www.a4architect.com/2010/02/18/haiti-free-house-plans-as-the-dust-settles/

    1. JULY 2010. Housing Finance Bank of Uganda.

    The Housing Finance Bank of Uganda first published their Growing House on 29th JULY 2010.
    http://housingfinance.ug/index.php?option=com_content&view=article&id=57

    Their Growing House concept does not in any way involve architectural design and does not utilize customized house plans.

    2. OCTOBER 2011.National Housing Corporation of Kenya. -STILL IN DEVELOPMENT AND NOT AVALIABLE FOR SALE as of 11th OCTOBER 2011.

    http://www.nhckenya.co.ke/index.php?option=com_content&view=article&catid=22&id=100&Itemid=29

    The NHC has also used a similar concept on their Kericho project which is still in its infancy stage and not developed. Currently [11th October 2011], the NHC is still developing the concept and their houses are still not on sale to the public until further notice once they are through with it.

    3. FAMILY BANK-OCTOBER 4TH 2011.

    http://www.familybank.co.ke/Info/Family%20Bank%20Introduces%20the%20Growing%20Home%20Mortgage

    The Family Bank growing home concept was released on 4th October 2011. The www.a4architect.com Diamond House will be among the designs that Family Bank customers can choose for them to take advantage of the 9 years of research and Development into efficient housing which includes a very wide choice of house designs that their customers can choose from.
    This research is continually being updated for the betterment of the Kenyan/East African Housing as a whole.

    CONCLUSION.

    www.a4architect.com will keep researching and developing new innovative Housing Solutions which are intended to offer Kenyans/East African and other people in the world solutions that will make their housing more efficient and in effect, avoid wastage of their hard-earned resources and keep costs low.

    We at www.a4architect.com are open to partner with willing Banks and Financial Institutions that would like to tap into our 9 year long research.

    Architect Francis Gichuhi Kamau
    www.a4architect.com
    info@a4architect.com
    +254721410684

  • FAMILY BANK’S GROWNG HOME CONCEPT SIMILARITIES WITH A4ARCHITECT.COM’S DIAMOND HOUSE CONCEPT

    FAMILY BANK’S GROWNG HOME CONCEPT SIMILARITIES WITH A4ARCHITECT.COM’S DIAMOND HOUSE CONCEPT.
    See Diamond House concept here
    http://feeds2.feedburner.com/real-estate-portal

    FAMILY BANK INTRODUCES THE GROWING HOME MORTGAGE

    On October 4, 2011,a mortgage product was released- ’GROWING HOME’.

    http://www.familybank.co.ke/Info/Family%20Bank%20Introduces%20the%20Growing%20Home%20Mortgage

    Family Bank Introduces the Growing Home Mortgage
    NAIROBI, KENYA / October 04, 2011 – Family Bank, today introduced its latest, innovative product for budding home owners; Growing Home Mortgage.

    Growing Home is Family Bank’s revolutionary approach to property ownership that makes owning a home simple and straight forward. Everyone wishes to own a home, but the expenses involved in building one even getting a mortgage are so huge and almost
    unbearable to many people. Family Bank noticed that the mainstream customer buys land, gets money and builds their house in phases, hence the invention of Growing Home Mortgage.

    Whether you need to pay step by step, build brick by brick, or expand floor after floor, Growing Home Mortgage has the most unique affordable solutions. Family Bank will quickly get you living comfortably in your home or growing your property portfolio.

    “A growing number of the middle class is now opting for home ownership, with many individuals and groups now appreciating that investing in a home not only provides a solid security, but is a relatively stable investment,” said Mr. Peter Munyiri, Family Bank
    Managing Director. He added that “Family Bank continues to monitor our customers’ wants and needs, so as to create products and services which are better suited to them.”

    You can now move into your new home from Kshs. 1 Million in four easy steps:
    1. If you own a plot, it will anchor the affordable financing for construction of your house, which you build in phases, as and when you can afford to do so.
    2. Once you’ve selected one of the available house plans, you can start building based on your timelines and your pocket.
    3. Once the first phase of your home is complete, move in!
    4. 4. Your new home will grow with you as your finances and circumstances allow

    http://www.familybank.co.ke/Info/Family%20Bank%20Introduces%20the%20Growing%20Home%20Mortgage

    THE SIMILARITIES BETWEEN FAMILY BANK’S GROWING HOME CONCEPT AND A4ARCHITECT.COM’S DIAMOND HOUSE PHASED CONSTRUCTION CONCEPT ARE AS FOLLOWS:

    Use of Phased Construction concept.
    a4architect’s Diamond house suggests that Phased Construction can increase the number of home loan applicants:
    ‘Step 2.

    Use of Phased construction.
    House owners can easily start with the 1 bed roomed phase, move to 2 and end up with the 3 bed roomed phase. A majority of potential house owners do not construct their houses simply because constructing 2 and 3 bedroom houses all at once is a huge task.’

    From DIAMOND HOUSE FLAT ROOF

    This use of Phased Construction to increase business has been noted by you in the GROWING HOME’ concept.

    http://www.familybank.co.ke/fckeditor/userfiles/phase_development.jpg

    A4architect’s Diamond House suggests that the house be phased in to 3 phases-Phase 1-45m2, phase2-67m2 and phase 3-92m2. This will in effect increae the number of potential customers by offering a wider range of choice which caters for a wider range of budget and space requirement.
    You have utilized a similar method, the difference being that your GROWING HOME concept utilizes only 2 choices as opposed to the DIAMOND HOUSE concept that has 3 choices.

    A4architect.com Diamond House concept suggests that the best method to dissipate the information to your customers is through use of brochures with the information regarding phased construction, labour-based procurement and construction technology summarized in steps:
    ’ We suggest that you allow us to place brochures at the bank counters with your logo as shown in the attached brochure sample.
    This will enable us dissipate information to your customers for a win-win situation between your Bank, your customers and us.
    ‘.
    This is the same method you are using to dissipate the information to your customers.

    Method of implementation.
    A4architect.com Diamond House concept suggests that the Diamond House concept be implemented as follows:
    ‘IMPLEMENTATION
    This design is implemented through the below process:

    1.choose a phase that suits you,
    2.contact www.a4architect.com
    obtain your Diamond House documentation and
    3.
    visit your nearest Bank branch for construction
    financing to achieve your dream home anywhere
    in Kenya.’

    In your launch of the GROWING HOME concept, you outlined the implementation as below:
    ‘You can now move into your new home from Kshs. 1 Million in four easy steps:
    1. If you own a plot, it will anchor the affordable financing for construction of your house, which you build in phases, as and when you can afford to do so.
    2. Once you’ve selected one of the available house plans, you can start building based on your timelines and your pocket.
    3. Once the first phase of your home is complete, move in!
    4. Your new home will grow with you as your finances and circumstances allow
    These steps are similar to the www.a4architect.com’s Diamond House concept suggestions.

    Use of Creative construction technology to reduce costs.
    The A4architect.com Diamond House concept suggests use of creative construction technology which i have researched for the last 10 years as a solution to making housing cheaper hence increasing the number of customers applying for home loans.
    The a4architect.com Diamond House concept includes a youtube video on how the costs can be reduced. One of the methods outlined in detail is the use of louvre windows which reduces window costs by 33.5%.
    http://www.a4architect.com/2011/09/19/diamond-house-plan-8900-per-month/

    In your GROWING HOME concept, you have also specified the same type of window as suggested earlier.

    http://www.familybank.co.ke/fckeditor/userfiles/phase_home_.jpg

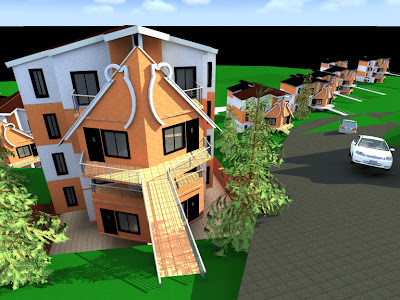

    Use of wooden patio at door entrance.
    The a4architect.com Diamond House concept specifies use of wooden patio at the front entrance.

    https://lh5.googleusercontent.com/-zjuyMXpzoiQ/TlYq9BJmUJI/AAAAAAAAFQk/Div8Q5n78V4/s320/4..jpg
    This wooden patio increases the building plinth area while keeping costs down hence increasing the number of Home Loan applicants.

    From DIAMOND HOUSE FLAT ROOF

    In your GROWING HOME concept, you have also used a similar wooden external door patio.

    In your launch of the GROWING HOME concept, you wrote;
    ‘Family Bank noticed that the mainstream customer buys land, gets money and builds their house in phases, hence the invention of Growing Home Mortgage.’
    The a4architect.com Diamond House also states that ‘Most residential houses constructed in Kenya employ this method of procurement.
    A labour-based contract is where the house owner supplies a local fundi or contractor with all the materials needed and pays the fundi/contractor for their labour.
    ‘.
    HOW WE CAN WORK TOGETHER.

    From the above similarities , its clear that we are all thinking along the same lines.
    Family Bank has its core business based on Banking and Finance.
    PRISM DESIGNS AFRICA www.a4architect.com has is core business based on architecture, construction and real estate.
    Therefore, chances are that www.a4architect.com will be in a better position to research and develop products related to construction and real estate . For example, the reason why the a4architect.com Diamond House is estimated at KES 676,000 while the Family Bank’s GROWING HOME is estimated at KES 1m is because the Diamond House has put in more effort in Research and Development hence more savings and eventually more business.

    GLOBAL CHANGE TOWARDS OUTSOURCING

    The world over, businesses are moving towards Joint Ventures/collaborations/outsourcing whereby they outsource services that are not part of their core business. For example,world-class companies such as Apple, Nokia, Google keep innovation flowing by encouraging other companies to work out accessory products that can ‘plug-in’ to their core functions and the resultant is a win-win situation. Such products are broadly termed as ‘Add-Ons’.
    My vision is for the a4arhitect.com Diamond House concept to be a part of the ‘Add-on’ within your GROWING HOME concept as opposed to the view that it is a competitor which needs to be edged out competitively from the market.
    Am well aware of the disadvantages of monopoly and therefore would like the a4architect.com Diamond House to compete fairly and favorably with other later entrants into the world of residential housing architecture. This competition will be to the benefit of Family Bank customers, Family Bank and a4architect.com.
    WAY FORWARD
    I suggest that a series of meetings between Family Bank and www.a4architect.com’s representatives be established to streamline the integration of the Diamond House concept into your GROWING HOME concept.
    This way, Family Bank will be able to concentrate on their core Banking function and a4architect.com will be able to carry out more Research and Development into methods of reducing the cost of mortgages in a win-win situation.
    This way, Family Bank will use less resources to come up with innovative mortgage solutions since already www.a4architect.com’s Diamond House plan will have carried out most fo the Research and Development needed in reducing const of construction as opposed to Family Bank re-inventing the wheel so to speak.

    REMUNERATIONS

    In such a collaboration whereby the a4architect.com’s Diamond House design is implemented into your GROWING HOME range of house plans to be chosen, the Diamond House will compete with the available designs and Family Bank customers will themselves decide which design serves them the best in terms of pricing and aesthetics.
    www.a4architect.com will get paid once a customer chooses and utilizes its designs and the remuneration will be as specified in Chapter 525 of the Laws of Kenya. See details of Chapter 525 here
    http://www.a4architect.com/architectural-consulting-service/
    The cost of the consultancy service is already included in the estimate of constructing the Diamond House plan.
    This way, Family Bank will not have the burden of paying www.a4architect.com hence a win-win situation.
    Of course, your alternative ideas on how we can collaborate on this issue are always welcome.

    Architect Francis Gichuhi Kamau
    www.a4architect.com
    info@a4architect.com
    +254721410684

  • 1/8TH LAND -DEVELOPMENT FOR ONE BEDROOMED AND BEDSITTER FLATS-RENTAL.

    1/8TH LAND -DEVELOPMENT FOR ONE BEDROOMED AND BEDSITTER FLATS-RENTAL.

    Rental property is considered one of the most stable forms of investment since the risks are low and it offers a constant supply of income which increases annually.
    An eighth acre of land measures approximately 50 ft [15m] by 100ft [30m].
    The dimension varies slightly from plot to plot. A few years ago, Local Authorities were allowed to approve subdivisions smaller than 1/8th of an acre such as 40 ft by 80ft, 33ft by 66ft. Now, most Local Authorities in Kenya have set a minimum size of plot to be 50ft by 100ft.

    Land on the surface of the earth is a constant. The size does not increase. The world’s population is currently at 7 billion and increasing at a rate of 1.1 percent. This necessitates that areas zoned for residential use are built to the maximum possible and habitable floor area extended vertically. This way, areas zoned for agriculture will be utilized to their maximum.

    ONE BEDROOMED UNITS IN 1/8TH ACRE PLOT.
    An eighth of an acre can comfortably fit 5 units of 1 bed roomed typology per floor. If the plot is in an area where the Local Authority can allow for 4 stories i.e. G+3, the units will be 20 in total.
    The total floor area per floor will be 200m2. For G+3 i.e Ground + 3 levels, this will be 800m2 of built-up area.

    COST OF CONSTRUCTION-ONE BEDROOMED UNITS IN 1/8TH ACRE PLOT.
    Construction can be low cost, middle cost or high cost.
    See here for the difference between the above 3.
    http://www.a4architect.com/2011/09/01/difference-between-low-middle-and-high-cost-finishes-in-construction-kenya/

    LOW COST CONSTRUCTION-ONE BEDROOMED UNITS IN 1/8TH ACRE PLOT.
    For low-cost construction we can safely assume a figure of KES 20,000 per square meter for construction.
    This will bring out a total of KES 20,000 X800M2 =KES 16,000,000. This cost includes professional consultancy fees.
    Rent per unit is KES 10,000 per month. There are 20 units in total hence total rent is KES 10,000X 20=KES 200,000.
    Return on Investment.
    The construction project will pay itself after 6.67 years without the cost of land included.
    Assuming the money is borrowed from a bank at 16 % interest, the interest will increase the payment term to 7.73 years.
    Any construction project that pays itself within 10 years is very viable.

    MIDDLE-COST CONSTRUCTION-ONE BEDROOMED UNITS IN 1/8TH ACRE PLOT.
    We will safely assume a construction cost of KES 25,000 per m2.
    800m2 will cost KES 20,000,000. This cost includes professional consultancy fees.

    Rent per unit will be higher than for low-cost –KES 12,000 per month.
    For 20 units, this will be KES 12,000X20=KES 240,000 per month.
    R.O.I
    The construction project without the cost of land will pay itself back after 6.94 years.
    Assuming the money is borrowed from a bank at 16 % interest rate, this will push the repayment period to 8.06 years.
    Since the period is less than 10 years, again this is a very viable option.

    HIGH COST CONSTRUCTION-ONE BEDROOMED UNITS IN 1/8TH ACRE PLOT.
    Assuming a construction cost of KES 30,000 per square meter, this brings the construction project without the cost of land to KES 30,000X800M2=KES 24,000,000. This cost includes professional consultancy fees.

    Rent per unit will come to KES 15,000. This totals to KES 15,000X20 =KES 300,000 per month.

    R.O.I
    The construction project without the land cost will pay itself back after 7.73 years if money is borrowed at 16% interest. If money is not borrowed, the repayment period will be 6.67 years.
    Again the period is less than 10 years so the project is very viable.
    Also, rents increase every year so the repayment period is reduced proportionately to the increase of rental income.

    BED SITTERS ON 1/8TH ACRE PLOT.
    A 1/8th acre plot can comfortably fit 6 units per floor.
    If the Local Authority allows for G+ 3 constructions, this will be a total of 24 units within the 1/8th plot.
    The total built-up area is 800m2 for all the 4 levels.

    COST OF CONSTRUCTION.
    LOW-COST-BED SITTERS ON 1/8TH ACRE PLOT.
    Assuming a cost per m2 of KES 20,000, this will total to KES 16,000,000. This cost includes professional consultancy fees.

    Assuming rent of KES 5,000 per unit, this totals to KES 5,000X 24 units =KES 120,000 per month.
    R.O.I
    This construction will pay itself back after 11.1 years without bank loan interest and after 12.8 years if 16% bank loan interest is included.
    This is a very viable option since low rents are sure security in that a unit will never lack a tenant. Also, with the possibility of rental increase over the years, the repayment prod will be much shorter.

    MIDDLE COST-BED SITTERS ON 1/8TH ACRE PLOT.
    Assuming a construction cost of KES 25,000 per m2, the total construction cost will be KES 20,000,000.00. This cost includes professional consultancy fees.

    Assuming rent pr unit of KES 7,000, the rental income will be KES 7,000X24 units =KES 168,000 per month.
    R.O.I
    The construction will pay itself back within 9.92 years without any interest and 11.51 years if the money is borrowed at 16% interest rate.
    This is a viable option considering that the project will pay itself back within +- 10 years since rental income increases hence a reduction in total time taken to recoup investment.

    HIGH COST-BED SITTERS ON 1/8TH ACRE PLOT.
    Assuming a construction cost of KES 30,000 per m2, the total construction cost comes to KES 30,000X800M2 =KES 24,000,000. This cost includes professional consultancy fees.

    Assuming rent of KES 9,000 per unit, this will be KES 9,000X24 units =KES 216,000 per month.
    R.O.I
    The construction project will recoup in 9.26 years if the money does not have interest and 10.74 years if an interest of 165 is charged to the money.
    Since rental income increase annually, the repayment time will eventually be shortened to less than 10 years. Therefore, this project is viable.

    CONCLUSION.
    The largest factor in determining whether to construct a plot in low, middle or high cost finishes is the distance form tarmac road. Plots very close to tarmac [700m or less from tarmac] are definitely zoned for high cost construction since the convenience of staying near a tarmac road will easily attract high rents.
    Another factor is proximity to a large town. Plots close to the large town will attract a higher rental income hence a justification to construct with a higher standard of finishes so as to be able to charge a higher rent.
    With the exchange rate of the KES to USD dollar rising, the effect can be minimized by specification of locally produced materials. Locally produced construction materials are not greatly affected by the exchange rate since they are not imported hence bough t using USD currency. Locally produced materials also have a lower transport cost since the distance from their source to the construction site is minimal compared to imported materials that have been transported for over thousands of Kilometers.

    For example, instead of using stone-coated steel roofing tiles[kes1600 per sq.m], this can be replaced with clay roofing tiles[kes450 per sq.m] which are equally aesthetically appealing and cost 2/3 cheaper. Same applies to doors, wardrobes, walling, paint, ceiling boards and wall/floor finishes.
    Click here to read more on tips to reduce cost of construction.

    Its time now to Buy Kenya Build Kenya.

    Architect Francis Gichuhi Kamau
    www.a4architect.com
    +254721410684
    info@a4architect.com

  • KIGALI BATSINDA ESTATE, KIGALI, RWANDA.

    KIGALI BATSINDA ESTATE, KIGALI, RWANDA.

    [googlemaps http://maps.google.com/maps/ms?msa=0&msid=205617053586273466800.0004ae9f0b8741a296b55&ie=UTF8&ll=-1.902431,30.075073&spn=0,0&t=h&vpsrc=6&output=embed&w=425&h=350]
    The Kigali Batsinda estate is located exactly 6.9 km from the United States of America Embassy in Kigali City.
    http://g.co/maps/zxrbz
    The project is located directly opposite the Social Security Fund for Rwanda Housing off the Kigali-Gatuna road.
    FRONT VIEW IMAGE

    From KIGALI HOUSES

    NUMBER OF UNITS
    The project consists of 41 No. Blocks.
    26 blocks consists of 3 and 4 bedroomed units.
    FLOOR AREA
    The 4 bedroomed unit consists of a total of 134m2 in plinth area.
    The 3 bedroomed unit consists of a total of 120m2 in plinth area.
    These blocks are located in the area just after the main entrance off the main road and extends till the wetland area below.
    In total, there are 104 units of 3 and 4 bed roomed typology.
    There are 52 units of 3 bedroom typology and 52 units of 4 bedroomed typology.
    These 3 and 4 bedroom house types have the living room, kitchen and 0ne bedroom on the first level and the rest of the bedrooms on the second floor level.

    ELONGATED WALKWAY LINKING SECOND FLOOR LEVEL HORIZONTALLY TO GROUND .
    FRONT VIEW

    From KIGALI HOUSES

    The 3 and 4 bed roomed units have been designed to offer maximum privacy to the occupants.

    This has been achieved by separating the entrances such that occupants of the 3 and 4 bed roomed units that are at Ground level access their units separately from the occupants of the 3 and 4 bed roomed units which are on top of the ground-level units.
    The design is such that the occupants of the 3 and 4 bed roomed units at 2nd floor level directly access their houses from the ground floor level through use of the elongated walkway.
    This way, occupants of the 2nd floor level units will be able to directly access their houses from the ground floor and avoid a situation thereby all house unit block occupants access the houses from a common point. This reduces congestion and improves the privacy level of the individual units.
    This elongated walkway design also aids the disabled to access 2nd floor level without necessarily using stairs.
    Also, access from the car park to the building will be designed to utilize ramps where applicable so as to enable easy access for people with disability.
    1 AND 2 BEDROOMED UNITS
    The project has 15 blocks consisting of 1 and 2 Bedroomed units.
    FLOOR AREA
    The 2 bedroomed unit is 67m2 in plinth area.
    The 1 bedroomed unit is 60m2 in plinth area.

    There are 120 one and two bedroomed units consisting of 60 one bedroom units and 60 two bedroomed units.
    These are located past the wetland area at the farthest location in the site going up towards the main road.
    REAR VIEW

    From KIGALI HOUSES

    Access to the 1 and 2 bedroom units located at the second floor level is again eased through use of the elongated walkway protruding from the second floor level horizontally and touching the ground level in front. This way, occupants of the second and third floor level 1 and 2 bed roomed units do not have to use common stairways for access hence ease of use and guarantee of a higher privacy level as opposed to all occupants of the units within the building using one common stair.
    FIRE ESCAPE SAFETY.
    The use of the elongated walk way also helps reduce fatality risks in case of fire hence need for alternative entry/exit points that do not create stampede bottle-neck effect.

    CAR PARKING
    These units are served by a 10 m wide road that has ample space for off-road parking for visitors. The off-road parking can accomodate 83 car parks along its 251 meters long stretch.
    In addition to the off-road parking, the project has 170 car parks to serve the house owners, bringing the total car parking spaces available to 253 .

    DOVES OF PEACE
    Each building has an abstract façade of 2 Peace doves facing each other looking upwards to the heavens.
    These peace doves serve the purpose of inspiring people to always seek and cherish everlasting peace.
    Architect Francis Gichuhi Kamau.
    www.a4architect.com
    +254721410684.

  • IDENTIFYING AN ARCHITECT IN KENYA.

    IDENTIFYING AN ARCHITECT IN KENYA.

    Identifying an architect in Kenya is simple. You can get a copy of the Yellow Pages or Directory and check out the Architects contacts page. Also,you can do a google search of which you will see several contacts of Architects.
    You can also look out for construction sites in your neighborhood and ask for the contact for the architect who is supervising the particular construction.

    CONDUCTING A BACKGROUND CHECK ON AN ARCHITECT IN KENYA
    The easiest way to confirm if an Architect is registered to practice in Kenya is to call/email Board of Registration of Architects and Quantity Surveyors of Kenya[BORAQS] http://www.boraqs.or.ke/ and ask the specific question e.g. is Francis Gichuhi Kamau of telephone number +254721410684 a registered architect with you e.t.c

    BORAQS can conduct a background check on behalf of a client since this is the body mandated by Government of Kenya to regulate architecture-all disciplinary issues regarding architecture are forwarded to BORAQS and they have the power to de-register/discipline architects in Kenya.

    OWNERSHIP OF DRAWINGS DONE BY ARCHITECT FOR CLIENT.

    All architecture service worldwide is guided by a similar copyright law. The architectural work is used by the client but the copyright for the design remains the work of the architect. The client cannot re-use/re-sell/alter their own house designs without permission from the original architect who authored their designs.

    SOURCING AND PROCURING THE SERVICES OF A BUILDING CONTRACTOR.

    Architects advice clients on the best practice in procurement. It’s the role of their clients to take or reject the advice given.
    So as the client can be able to compare oranges with oranges so to speak, the architect will come up with drawings and the Quantity surveyor will come up with unpriced Bills of Quantities [breakdown of all materials and labour for the building project]. With these documents, the client can be able to give the contractors who will all quote for the same quantities, standards and specifications, hence ensuring uniformity in the quotation.
    The contract to construct a building is usually between the Client on one side and the Building Contractor on the other. The architect’s role is to act as a referee between the two sides and make sure that all parties keep their end of the bargain as per the contract.

    3 TYPES OF PROCUREMENT .

    Worldwide, there are best practices that are used by architects and their clients to source contractors. The procurement processes are categorized in 3 types.

    1. Direct single-sourcing procurement:
    This is whereby the client identifies a contractor he/she would want to use and asks the contractor to quote. This has the disadvantage of the client not being able to take advantage of competition which would otherwise have made the particular contractor to quote less or quote a faster time to complete the project.

    2. Open procurement.
    This is whereby the client uses mass media such as newspapers to advertise for contractors to quote for the works. The contractors are asked to collect the project drawings and unpriced Bills of Quantities from a particular location, visit the site and give a quotation within a specified time-usually between 2 weeks to 1 month.
    In some cases, the contract requests that Bid bonds and Performance bonds issued by Banks are to be used to make sure that the contractors abide to whatever figures they quote in their final quotations. Failure to which the banks issuing the bonds will compensate the client with the amount stated in the bonds at the loss to the contractor.
    This is because in an open procurement method, the client will receive very many quotes from all sorts of contractors and there will be a need to put a mechanism in place so that only serious contractors quote for the works.

    3. Selective procurement method.
    In this method, the client, through the advice of the architect, identifies a number of contractors who he/she has previously seen their works and is sure that they can handle a project of the specified magnitude to satisfaction.
    These contractors are asked to pick up the drawings and Bills of quantities ,visit the site and return their quotations within a specified time.
    The quotations are then analyzed by the architect who produces an analysis report which the client will use to award the contract.
    This has the advantage in that it makes it easier to select the contractor and the risk of selecting a non-performing contractor is eliminated.

    ARCHITECT FEES.

    In Kenya and most countries worldwide, the Board of Registration of Architects and Quantity Surveyors regulates the fees that architects charge. The fees are charges as per Chapter 525 of the Laws of Kenya.
    See a copy here
    http://www.a4architect.com/architectural-consulting-service/
    On average, the full fee for architectural services from design including supervision to completion of the project is in the range of 6% of the construction cost.
    The construction cost is initially the estimated construction cost then once a contractor is selected, the construction cost changes to reflect the actual contract sum.
    For some services off the main architectural service as described in Chapter 525 of the laws of Kenya such as arbitration, model making, marketing e.t.c, the architect charges on a per hour basis and the hourly charges are regulated by the BORAQS.

    Architect Francis Gichuhi Kamau.
    www.a4architect.com
    +254721410684
